Send InquiryUSB Temperature Loggers
USB Temperature Loggers Specification
- Sensors Specification
- Integrated digital temperature sensor
- Resolution
- 0.1C
- Interface
- USB 2.0
- Usage
- Temperature recording and monitoring
- Charging Voltage
- Not rechargeable (disposable battery)
- Display Type
- LED indicator
- Components
- Temperature sensor, USB plug, indicator LED
- Output
- USB interface for data transfer
- Response Time
- ~30 seconds
- IP Rating
- IP67
- Product Type
- USB Temperature Logger
- Application
- Cold chain, pharmaceuticals, food, storage, logistics
- Rated Voltage
- 3V DC
- Supply Voltage
- 3V
- Size
- Approximately 85 x 25 mm
- Dimension (L*W*H)
- 85 x 25 x 8 mm
- Function
- Temperature Data Logging
- Color
- White & Blue
- Weight
- ~15g
- Thickness
- About 8mm
- Capacity
- Up to 16,000 readings
- Current Rating
- <10uA standby, <15mA measurement
- Frequency
- Data logging at set intervals
- Shelf Life
- Up to 2 years (unused)
- Status Indicators
- LED blinking: normal/logging/alarm
- Memory Capacity
- 16K readings maximum
- Software Compatibility
- No software required for PDF, Windows compatible for data extraction
- Alarm Type
- Visual alarm (LED blink)
- Recording Interval
- Available intervals: 10sec to 24 hrs (configurable)
- Data Export Format
- PDF (automatic), Excel (by software)
About USB Temperature Loggers
Supported by a state-of-the-art infrastructure facility, we are able to offer a wide range of USB Temperature Loggers to the clients. These temperature loggers are manufactured by using supreme quality raw materials and latest technology machines. Our USB temperature loggers are used to measure temperature in warehouses, museums, refrigeration trucking, vacation homes and greenhouses. Known for their inherent features like precision, flawlessness and outstanding performance, these loggers are highly appreciated by clients based across the nation.

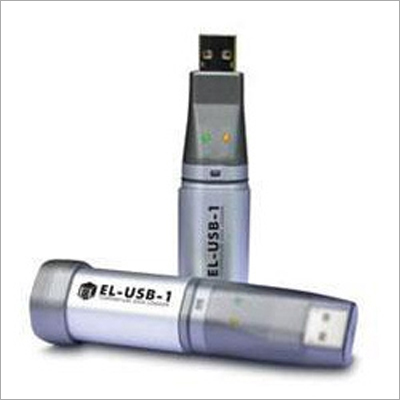

USB Temperature Loggers
Manufacturer : Lascar Electronics USB Temperature Logger Features
-
USB Interface for Set-up and Data Download
-
2 User-Programmable Alarm Thresholds
-
Red and Green LED Alarm Status Indicator
-
Yellow LED Troubleshooting Indicator
-
Replaceable Internal Lithium Battery
-
Programmable Start Date and Time
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Flexible Recording & Ample Storage
With user-selectable recording intervals from 10 seconds up to 24 hours, the logger easily adapts to diverse monitoring needs. Its substantial memory stores a maximum of 16,000 temperature readings, providing extended coverage for long-term applications without data loss.
Simple Data Extraction & Analysis
Exporting logged temperature data is straightforward. Once connected via USB, the logger automatically generates a PDF reportno software required. For advanced analysis, data can be extracted in Excel format using compatible software on Windows PCs, streamlining record keeping and compliance.
Visual Status & Alarm Indicators
The integrated LED indicator provides clear visual feedback on operational statusblinking patterns signal normal operation, active logging, or an alarm event. This feature ensures users can quickly assess device status and respond as needed without technical expertise.
Robust Design for Industrial Applications
Manufactured with IP67 ingress protection and a low-profile, lightweight build, this temperature logger excels in challenging environments. Its disposable battery supports up to two years of shelf life when unused, making it fit for purpose in cold chain logistics, pharmaceutical transportation, and more.
FAQs of USB Temperature Loggers:
Q: How do I set the recording interval on the USB Temperature Logger?
A: The recording interval can be set from 10 seconds to 24 hours according to your monitoring requirements before deployment. This configuration is typically done using compatible software prior to starting a logging session. Once set, the logger will automatically record temperature data at the chosen interval.Q: What is the process for exporting data from the logger?
A: For data export, simply connect the logger to a USB port. It automatically generates a PDF reportno additional software is needed. For more detailed analysis, the data can be extracted as an Excel file using compatible software on a Windows computer.Q: When will the visual alarm be triggered on this device?
A: The visual alarm (LED blink) is activated when recorded temperatures exceed preset thresholds. This immediate indication alerts users to potential temperature violations during the logging period, ensuring quick responses and better quality control.Q: Where can the USB Temperature Logger be applied?
A: This logger is ideal for applications such as pharmaceuticals, food storage, cold chain logistics, and other sensitive supply chain environments where accurate temperature monitoring and reliable documentation are essential.Q: What are the benefits of using a disposable USB Temperature Logger?
A: This disposable logger offers convenience, eliminating the need for recharging and maintenance. Its up-to-2-year shelf life ensures its ready for deployment as needed, while the integrated USB and visual alarms simplify both setup and use, promoting compliance and data integrity.Q: How does the device indicate its current operation mode?
A: The device uses its LED indicator to communicate status: different blinking patterns inform users whether the logger is in normal mode, logging mode, or if an alarm condition has been detected. This makes monitoring the loggers state intuitive and efficient.Q: What should I do when the loggers memory is full?
A: When the memory reaches its capacity of 16,000 readings, the logger stops recording further data. To retrieve and store the accumulated temperature records, connect the device via USB to your computer and export the data before deploying a new logger if further monitoring is needed.
